Selector Lever Handle, Removing And Installing: Removing

-- Ignition switched off

-- If equipped remove the ignition key.

-- Wait until the lamp in the Selector Lever Transmission Range Position Display Unit -Y26-, -2- turns off.

Fig 1: Identifying Selector Lever Release Button

Courtesy of AUDI OF AMERICA, LLC

-- Pull the selector lever handle upper section -1- upward.

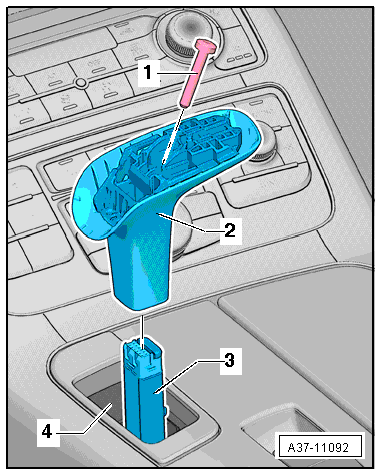

Fig 2: Identifying Selector Lever Handle Upper Section

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

Fig 3: Locating Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Pull the selector lever handle upper section -2- upward.
