Selector Mechanism, Disassembling And Assembling: Removing

-- Ignition switched off

-- If equipped remove the ignition key.

-- Wait until the lamp in the Selector Lever Transmission Range Position Display Unit -Y26-, -2- turns off.

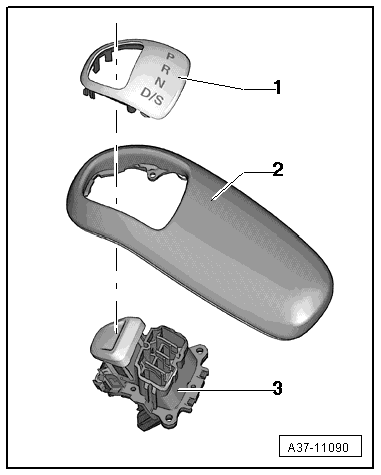

Fig 1: Identifying Selector Lever Release Button

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Selector Lever Release Button -E681- and the Selector Lever Transmission Range Position Display Unit -Y26- are a unit -1-. They can only be replaced together.

Fig 2: Identifying Selector Lever Handle Upper Section

Courtesy of AUDI OF AMERICA, LLC

-- Pull the selector lever handle upper section -1- upward.

-- Remove the three bolts -arrows- on the bottom of the selector lever handle upper section.

Fig 3: Locating Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Selector Lever Release Button -E681- and the Selector Lever Transmission Range Position Display Unit -Y26-, -3- carefully.

Fig 4: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1- carefully.
