Transmission, Transporting
Special tools and workshop equipment required
- Hook And Support Tool:3311 with Hook And Support Tool - Bolt:3311/1
- Shop Crane:VAS6100
Procedure
- Transmission removed.
CAUTION:
Transmission components could be damaged if they are not set down correctly.
- Do not place the transmission on the ATF cooler or oil pan.
WARNING:
An accident could result if the transmission is not secured correctly.
- Exchange the bolt on the Hook And Support Tool:3311 for a new, longer Hook And Support Tool - Bolt:3311/1 .
- Only this way can the transmission be secured.

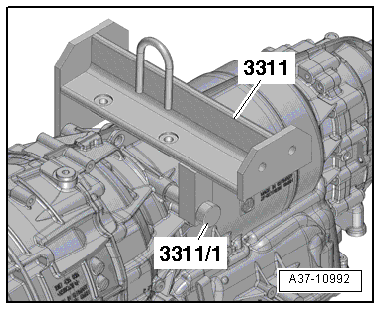

-- Secure the transmission on the Hook And Support Tool:3311 (use new longer Hook And Support Tool - Bolt:3311/1 ).
-- Lift and transport the transmission with the Shop Crane:VAS6100 .
