Special Tools

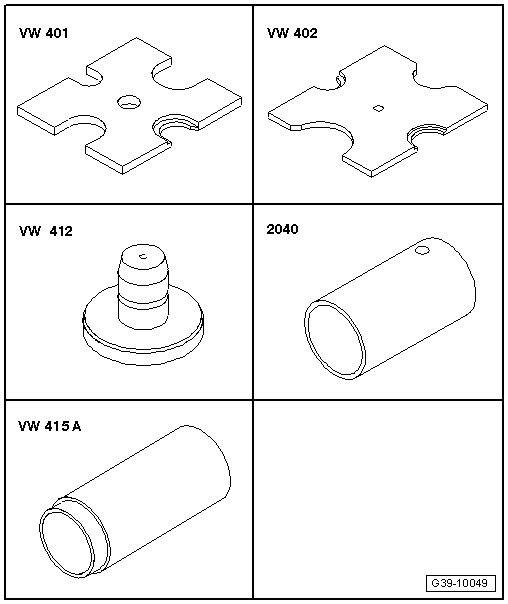

Fig 1: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Press Plate:VW 401
• Press Plate:VW 402
• Press Piece - Multiple Use:VW412
• Press Piece - Front Control Arm:2040
• Press Piece - 37mm:VW415A

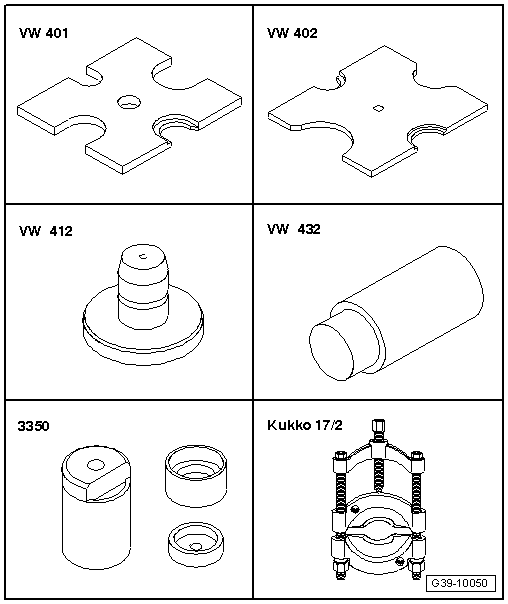

Fig 2: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Press Plate:VW401
• Press Plate:VW402
• Press Piece - Multiple Use:VW412
• Press Piece - Bushing - 50mm Diameter:VW432
• Bearing Installer - Carrier Bearing:3350
• Puller - Kukko Quick Action Separating Tool - 22-115mm:17/2

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit:SMN372500
  Fig 3: Identifying Used Oil Collection And Extraction Device VAS 6622

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Final Drive/Gearbox:T10139

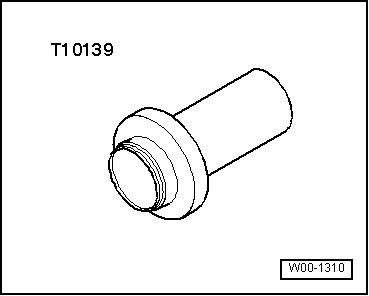

  Fig 4: Identifying Thrust Piece T10139

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Crankshaft/Power Steering Seal:T20143/1

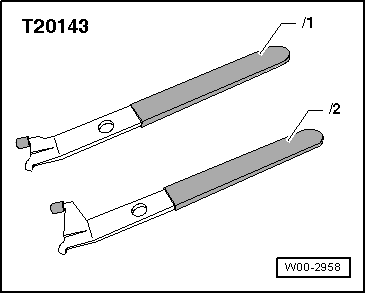

  Fig 5: Extractor Hook T20143

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Flange Seal:T40189

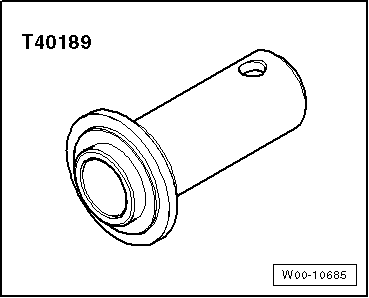

  Fig 6: Identifying Thrust Piece T40189

  Courtesy of AUDI OF AMERICA, LLC
• Pressurized Gearbox Oil Filler Kit:VAS6617

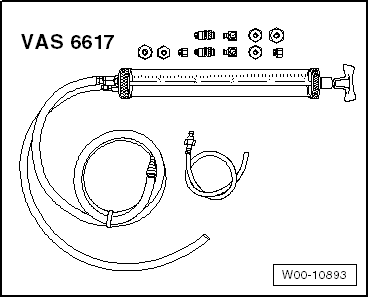

  Fig 7: Gearbox Oil Filler Kit VAS6617

  Courtesy of AUDI OF AMERICA, LLC
• Bearing/Bushing Installer - Multiple Use:VW295

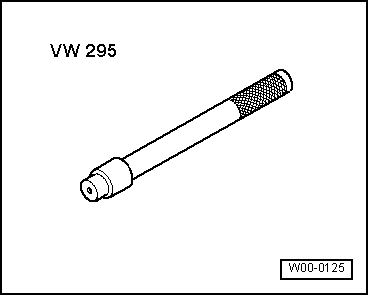

  Fig 8: Bearing/Bushing Installer - Multiple Use VW295

  Courtesy of AUDI OF AMERICA, LLC
• Press Piece - Rod:VW409

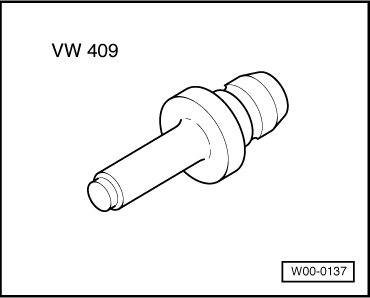

  Fig 9: Identifying Punch VW 409

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Seal Lever:VW681  or Puller - Crankshaft/Power Steering Seal:T20143/2

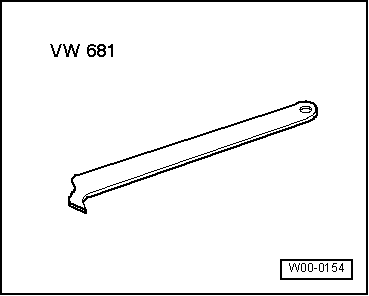

  Fig 10: Extractor Lever VW 681

  Courtesy of AUDI OF AMERICA, LLC
• Slide Hammer Set:VW771

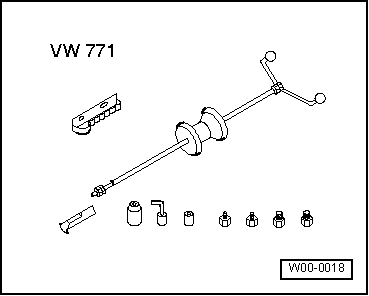

  Fig 11: Adapter VW 771/40 From Slide Hammer-Complete Set VW 771

  Courtesy of AUDI OF AMERICA, LLC
• Vibration Damper Tool:3419

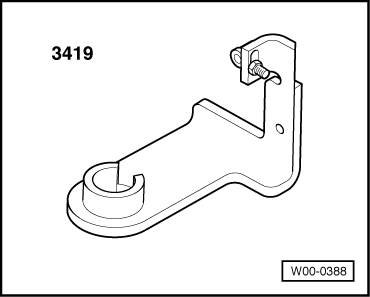

  Fig 12: Identifying Retainer 3419

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Output Shaft:T40239
