Window Guide, Removing And Installing: Notes

-- The exterior mirror is moved. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the door trim panel and the window frame trim. Refer to OVERVIEW - FRONT DOOR TRIM PANEL .

-- The B-pillar trim is removed. Refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- The door window is removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

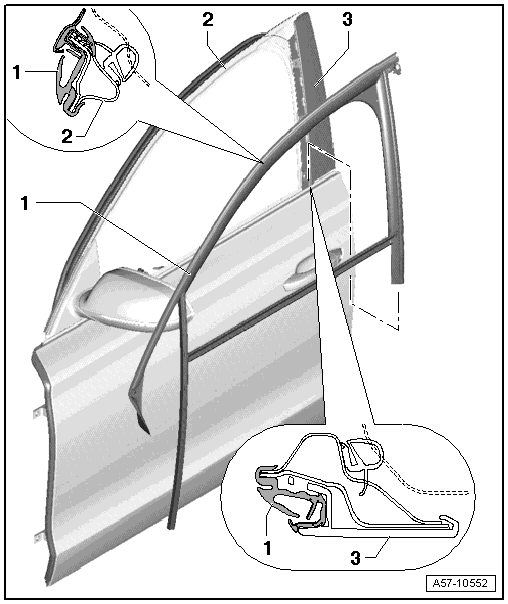

-- Unhook the window guide on the bottom of the window frame from the flange.

-- Remove the seal profile for the window guide on the B-pillar (self-adhesive).

-- Remove the window guide from the B-pillar trim and unclip it (4x) on the C-pillar.

-- Remove the inner window shaft strip from the door flange.

-- Remove the window guide on the B-pillar and on the C-pillar from the door.

-- Remove the window guide from the door.

-- For easier installation, coat window guide with a soap solution.

-- Position the window guide at the top of the B-pillar and then push it into the guide with the clip. Refer to Install the Guide .

-- When doing this, the molded piece must contact the door.

-- Press the window guide on the window frame and clip it to the C-pillar.

-- Install the trim on the B-pillar and on the C-pillar and push it into the window guide.

-- Press the window shaft strip back on.

-- Clean the adhesive surface on the door with Cleaning Solution:D 009 401 04  .

-- Tape the sealing profile for the window guide to the B-pillar with two-sided adhesive tape.
