Powertrain Overview

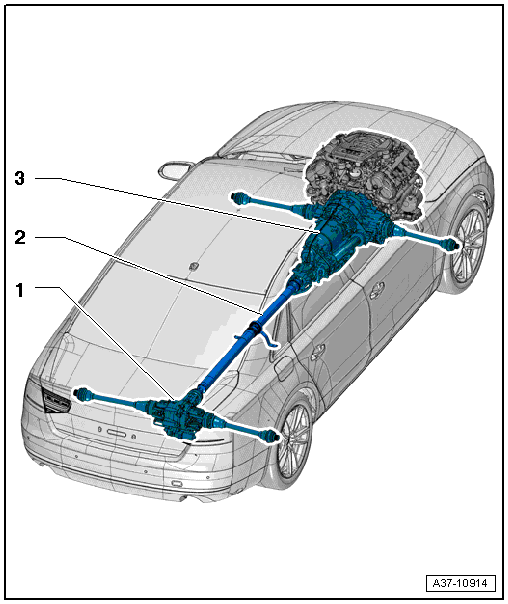

Fig 1: Powertrain Components Location

Courtesy of AUDI OF AMERICA, LLC

Rear Final Drive
- Only for vehicles with AWD
- Removing and Installing. Refer to FINAL DRIVE, DIFFERENTIAL .
Driveshaft
- Removing and Installing. Refer to DRIVESHAFT ATTACHED ON TRANSMISSION SIDE .
Automatic Transmission 0BK
- Shown for vehicles with all wheel drive.
