ATF Lines, Removing And Installing: Notes

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit:SMN372500
• Engine Bung Set:VAS 6122
• Hose diameter approximately 18 mm
• Compressed air gun, commercially available
• Protective eyewear

-- Place the Used Oil Collection and Extraction Unit:SMN372500  under the transmission.

Vehicles through MY 2014

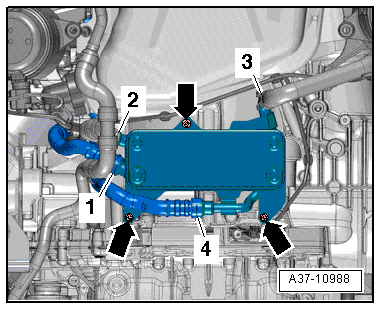

-- Remove the clamps -1 and 4- and disconnect the ATF lines.

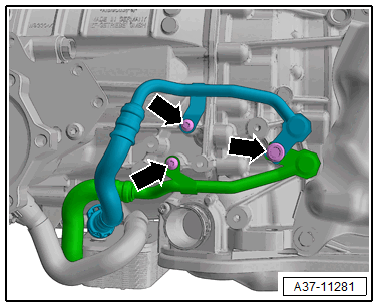

-- Remove the bolts -arrows- and the ATF lines.

Courtesy of AUDI OF AMERICA, LLC

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122  .
