Selector Mechanism, Removing And Installing: Removing

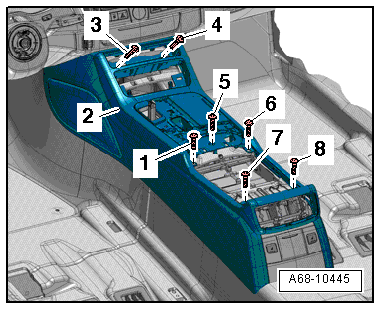

Fig 1: Removing Front Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to Center Console, Removing and Installing .

-- Disconnect the connector -1-.

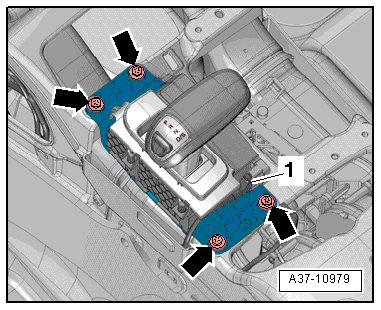

Fig 2: Identifying Selector Mechanism Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the selector mechanism.
