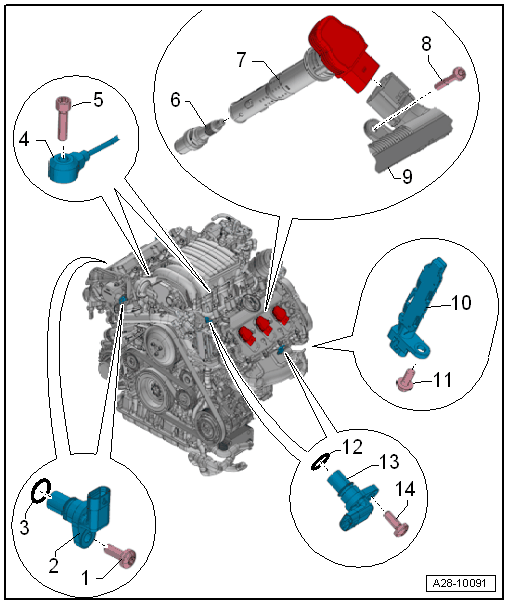

Overview - Ignition System
- Bolt
- 9 Nm
- Camshaft Position Sensor
- Cylinder Bank 1 (Right)
- Intake side: Camshaft Position Sensor -G40-
- Exhaust side Camshaft Position Sensor 3 -G300-
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- Cylinder Bank 1 (Right)
- O-ring
- Always replace after removing
- Knock Sensor
- Cylinder bank 1 (right) Knock Sensor 1 -G61-
- Cylinder bank 2 (left) Knock Sensor 2 -G66-
- The contact surfaces between the knock sensor and cylinder block must be free of corrosion, dirt and grease.
- Removing and installing. Refer to KNOCK SENSOR, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Spark Plug
- Remove and install with the Spark Plug Removal Tool: 3122B . Refer to SPARK PLUGS, REPLACING .
- Tightening specification. Refer to SPARK PLUGS, REPLACING .
- Replacement interval. Refer to Maintenance Tables.
- Ignition Coil with Power Output Stage
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Ignition Coil 5 with Power Output Stage -N323-
- Ignition Coil 6 with Power Output Stage -N324-
- Removing and installing. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Wiring Harness
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-ring
- Always replace after removing
- Camshaft Position Sensor
- Cylinder Bank 2 (Left)
- Intake side Camshaft Position Sensor 2 -G163-
- Exhaust side: Camshaft Position Sensor 4 -G301-
- Removing and installing. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
- Cylinder Bank 2 (Left)
- Bolt
- 9 Nm
