Active Steering Control Module - J792-, Removing and Installing: Notes

Special tools and workshop equipment required

• Torque Wrench 1783 - 2-10Nm - VAG1783-
• Vehicle Diagnostic Tester

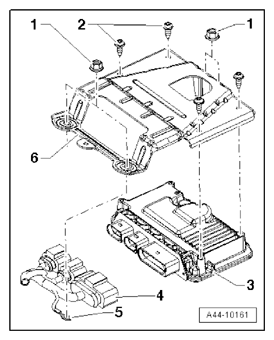

Overview - Active Steering Control Module - J792-

1. Nut, 2.5 Nm
2. Bolt, 8 Nm
3. Active Steering Control Module - J792-
4. Connector, clipped to the wiring harness
5. Ground (GND) Wire
6. Bracket

   Courtesy of AUDI OF AMERICA, LLC
