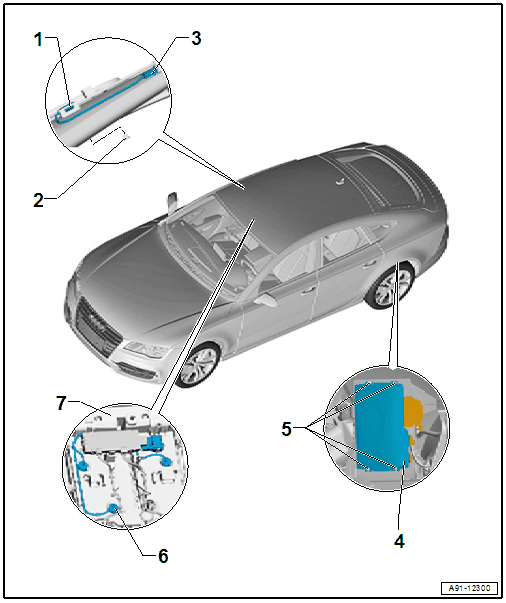

Component Location Overview - Sound System, Sound Amplifier, Microphones, Standard, BOSE, From My 2015

Courtesy of AUDI OF AMERICA, LLC

1. ANC Microphone with Retaining Plate
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
2. Trim
   • Quantity: 4
3. Wiring Harness Coupling
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
4. Digital Sound System Control Module -J525-
   • Connector Assignment, 9VD. Refer to the Appropriate Wiring Diagram.
   • Connector Assignment, 8RY. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, STANDARD AND BOSE, FROM MY 2015 .
5. Screw
   • 4 Nm
   • Quantity: 4
6. Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
7. Front Interior Lamp -W1-
   • With Microphone Unit in Front Roof Module - R164-
   • Removing and installing. Refer to CONTROLS . .
