Component Location: External Audio Source CONNECTIONR199 In The Center Console

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
GWWN91-12191Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

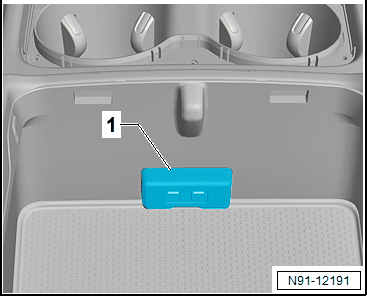

The External Audio Source Connection -R199- -1- is located in the center console storage compartment under the front armrest.
