Special Tools

Special tools and workshop equipment required

• Used Oil Collection And Extraction Unit:SMN372500
  Fig 1: Identifying Used Oil Collection And Extraction Device VAS 6622

  Courtesy of AUDI OF AMERICA, LLC
• Counterhold - Multiple Use:T10172A  with Counterhold - Kit - Adapter 5 Counterhold - Kit - Adapters 5-9:T10172/5-9
  Fig 2: Counter-Holder Tool T10172

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Ball Joint:T40010A

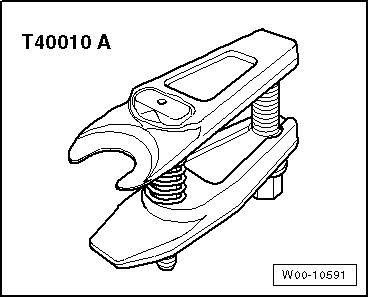

  Fig 3: Ball Joint Puller T40010 A

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers:VAG1275A

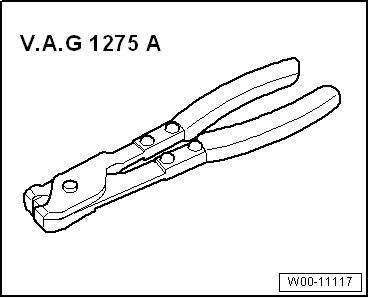

  Fig 4: Identifying Hose Clip Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 5-50Nm:VAG1331
  Fig 5: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 Insert - Open Jaw - 19mm:VAG1331/5

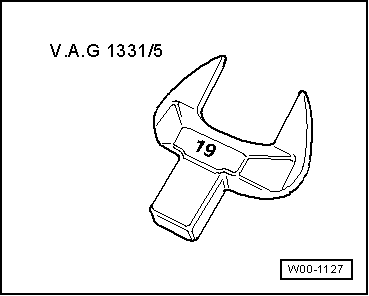

  Fig 6: Identifying Torque Wrench 1331 Insert

  Courtesy of AUDI OF AMERICA, LLC

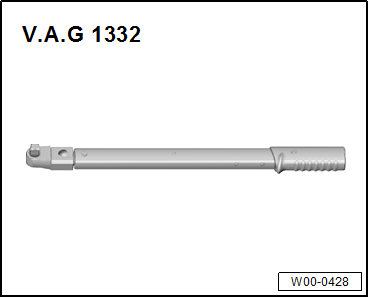

• Torque Wrench 1332 40-200Nm:VAG1332
  Fig 7: Identifying Torque Wrench 40-200 Nm V.A.G 1332

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Ring Wrench - 21mm:VAG1332/7

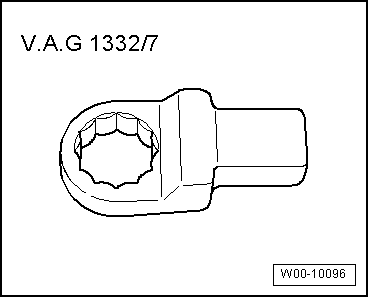

  Fig 8: Identifying Ring Insertion Tool V.A.G 1332/7

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Open Ring Wrench - 24mm:VAG1332/9
  Fig 9: Identifying Insertion Tool V.A.G 1332/9

  Courtesy of AUDI OF AMERICA, LLC
• Power Steering Test Unit:VAG1402
  Fig 10: Identifying Power Steering Test Unit V.A.G 1402

  Courtesy of AUDI OF AMERICA, LLC
• Power Steering Test Unit - Adapter 3:VAG1402/3
  Fig 11: Adapter V.A.G 1402/3

  Courtesy of AUDI OF AMERICA, LLC
• Power Steering Test Unit - Adapter Hose:VAG1402/6
  Fig 12: Adapter Set V.A.G 1402/6

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1410:VAG1410
  Fig 13: Identifying Torque Wrench VAG 1410

  Courtesy of AUDI OF AMERICA, LLC
• Clamping Pliers:VAG1682A  with Clamping Pliers - Jaws:VAG1682A/1

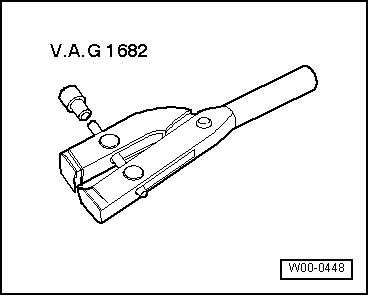

  Fig 14: CV Joint Boot Clamp Tool V.A.G 1682

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1783 - 2-10Nm :VAG1783
  Fig 15: Identifying Torque Wrench (2 to 10 Nm) VAG 1783

  Courtesy of AUDI OF AMERICA, LLC

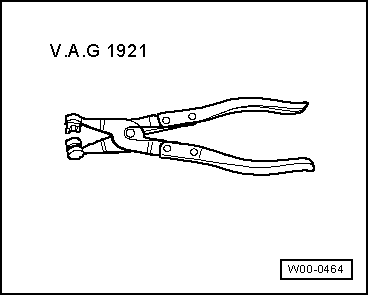

• Hose Clip Pliers :VAG1921
  Fig 16: Hose Clamp Pliers V.A.G 1921

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench Insert - Open Jaw :VAG1923

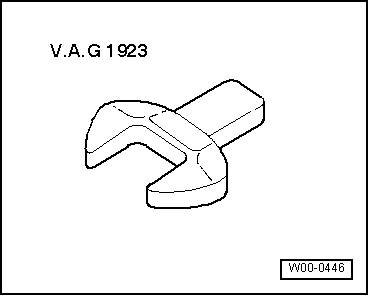

  Fig 17: Identifying Box End Wrench Insert V.A.G 1923

  Courtesy of AUDI OF AMERICA, LLC
• Engine Bung Set :VAS6122

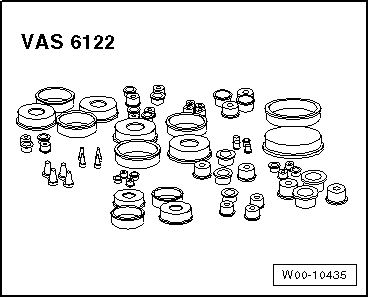

  Fig 18: Engine Bung Set Plugs VAS 6122

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers :VAS6362
  Fig 19: Clamp Pliers VAS 6362

  Courtesy of AUDI OF AMERICA, LLC
• Steering Wheel Scales :VAS6458

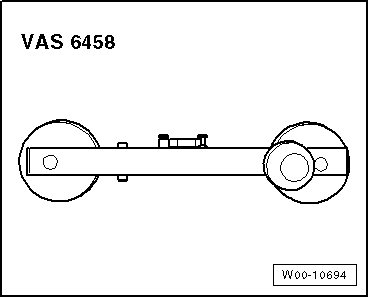

  Fig 20: Identifying Steering Wheel Scales VAS 6458

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25 mm :3094
  Fig 21: 3094 Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
