ATF Lines, Removing And Installing: Installing
Install in reverse order of removal. At the same time pay attention to the following:
Danger of causing damage to the transmission.
- Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
- The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.

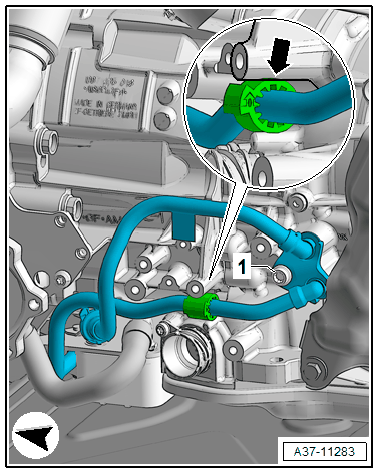

-- Install the ATF lines all the way and then the clips -1 and 4-.
-- Re-tighten the bolts -arrows- to the tightening specification.
Install in reverse order of removal. At the same time pay attention to the following:
Danger of causing damage to the transmission.
- Remove all the plugs on the ATF lines and on the transmission that were installed during removal.
- The ATF cooling function will not work and the transmission will be damaged if the plugs are forgotten.
-- Lightly coat the ATF supports with ATF.

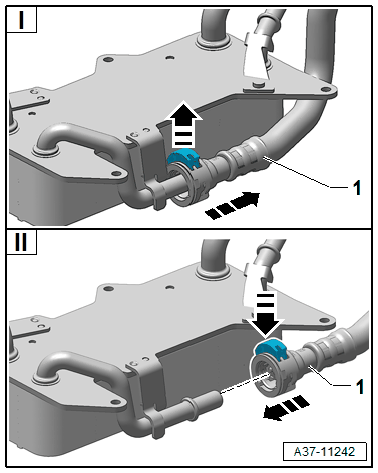

-- Insert the ATF line -1- all the way on the ATF supports until the catches are released.
-- In this position push down the quick-release coupling clip.
Vehicles with Metal ATF Lines
-- Re-tighten the bolts -arrows- to the tightening specification.
Vehicles with Plastic ATF Lines
-- Align the ATF lines and position the pronged ring -arrow- in the transmission depression.
-- Re-tighten the bolt -1- to the tightening specification.
All Vehicles
