Overview - Final Drive: Notes

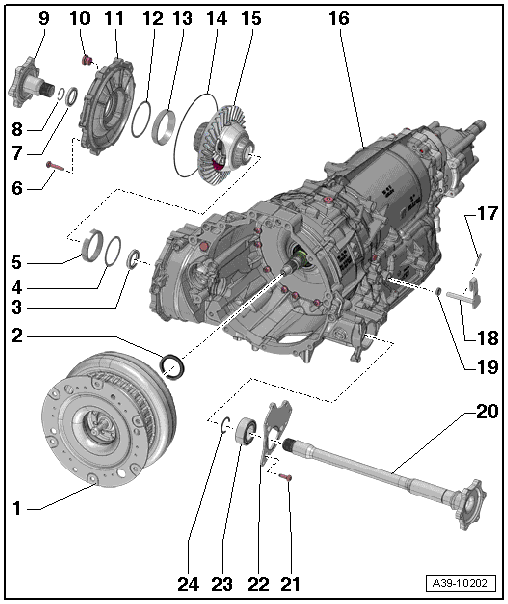

Fig 1: Exploded View Of Final Drive

Courtesy of AUDI OF AMERICA, LLC

Torque Converter
- Overview. Refer to .
Shaft Seal
- For the torque converter
Shaft Seal
- For the left flange shaft
- Between the final drive and the transmission housing
- Replacing. Refer to LEFT SEAL, REPLACING .
Shim
- Behind the taper roller bearing outer race
Taper Roller Bearing Outer Race
Bolt

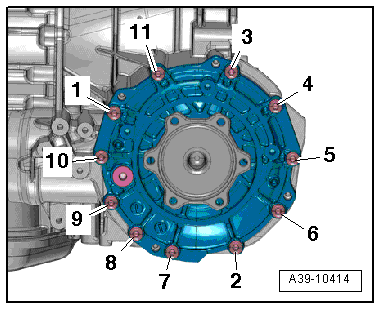

- Tightening specification and sequence. Refer to Figure.
Shaft Seal
- For the right flange shaft
- Replacing. Refer to RIGHT SEAL, REPLACING .
Circlip
- Always replace
Right Flange Shaft
- Removing and Installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
Plug
- For the inspection and fill hole
- For the gear oil inside the front final drive
- Tightening Specification. Refer to Drain and Sealing Plug .
Cover
- For the front final drive
- Pay attention to the alignment sleeves
Shim
- Behind the taper roller bearing outer race
Taper Roller Bearing Outer Race
O-ring
- On the front final drive cover
- Removing and Installing. Refer to O-RING ON FRONT FINAL DRIVE COVER, REMOVING AND INSTALLING .
Differential
Transmission
Spring Pin
- Removing and Installing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Shift Lever
- Removing and Installing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Shaft Seal
- For the shift lever
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Left Flange Shaft
- Removing and Installing. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .
Bolt
- 9 Nm +60°
- Always replace
Gear Carrier
- Use the clip -item 24- OVERVIEW - FINAL DRIVE => List Item:Retainer to attach together with the mount -item 23- OVERVIEW - FINAL DRIVE => List Item:Bearings to the left flange shaft.
- Is identified together as the left flange shaft mounting bracket.
Bearings
- For the left flange shaft
Retainer
- For the left flange shaft bearing
