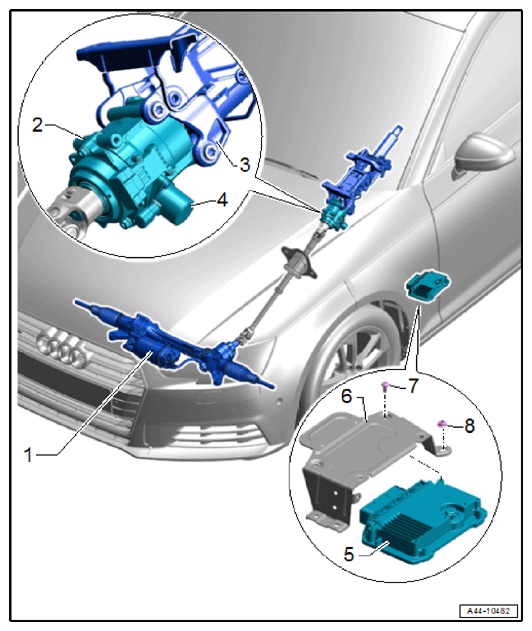

Overview - Dynamic Steering
- Steering Gear
- With Electromechanical Power Steering Motor -V187- and Power Steering Control Module -J500-
- Active Steering Motor -V477-
- Replace the steering column if faulty. Refer to Steering Column, Removing and Installing.
- Steering column component
- Do not disconnect or loosen from the steering column
- Steering Column
- Overview. Refer to Overview - Steering Column.
- Perform the basic setting after replacing using the Vehicle Diagnostic Tester Dynamic Steering Basic Setting
- Active Steering Safety Lock Actuator - F437-
- Removing and Installing. Refer to Active Steering Safety Lock (Locking Solenoid), Removing and Installing.
- Active Steering Control Module - J792-
- Component location: in front of the driver seat
- Removing and Installing. Refer to Active Steering Control Module - J792-, Removing and Installing .
- Perform the basic setting after replacing using the Vehicle Diagnostic Tester Dynamic Steering Basic Setting
- Bracket
- For the Active Steering Control Module - J792-
- Nut
- 6 Nm
- Bolt
- 8 Nm
