Front Lid Latch, Lubricating

Special tools and workshop equipment required

• Universal Oil Spray -G 000 115 A2-

Requirements:

• Vehicle must be at least at room temperature.

Procedure:

-- First clean the lubricated areas with a lint-free cloth.

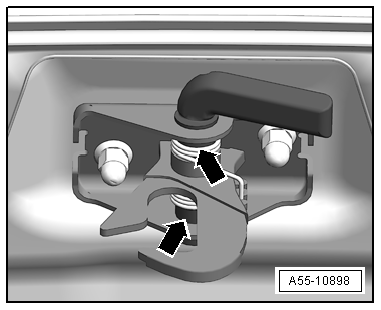

-- Lubricate the hook at the marked locations -arrows- using Universal Oil Spray -G 000 115 A2-.

Courtesy of AUDI OF AMERICA, LLC

-- Operate the movable components several times to allow the lubricating oil to seep in.

-- Remove any excess lubricant with a cloth.
