Engine Versions

Vehicle with particulate filter, exhaust variant

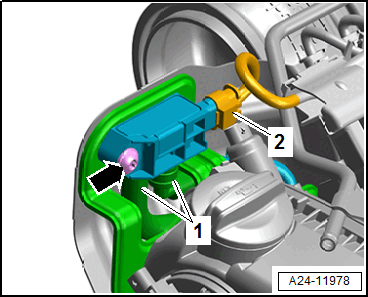

The following component is visible after removing the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Exhaust Pressure Sensor 1 -G450-

The following components are visible on the underbody:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

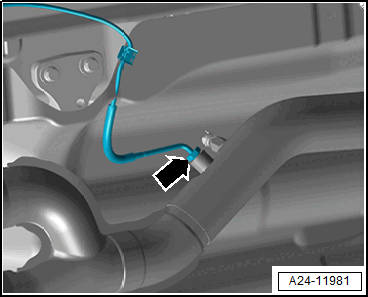

• Pre-Particulate Filter Temperature Sensor -G506- -arrow-

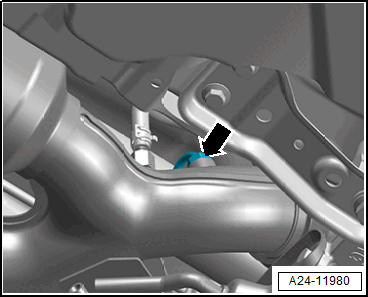

• Post-Particulate Filter Temperature Sensor -G527- -arrow-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
