Outer Window Shaft Strip, Removing And Installing: Installing

TIP:

The lower edge of the window shaft strip can be coated with tire mounting paste for installation.

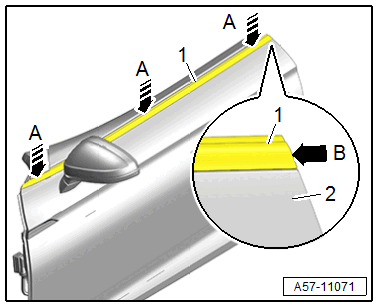

A4:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar -A arrows-.

A5:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar -A arrows-.

Continuation:

Further installation is the reverse order of removal.
