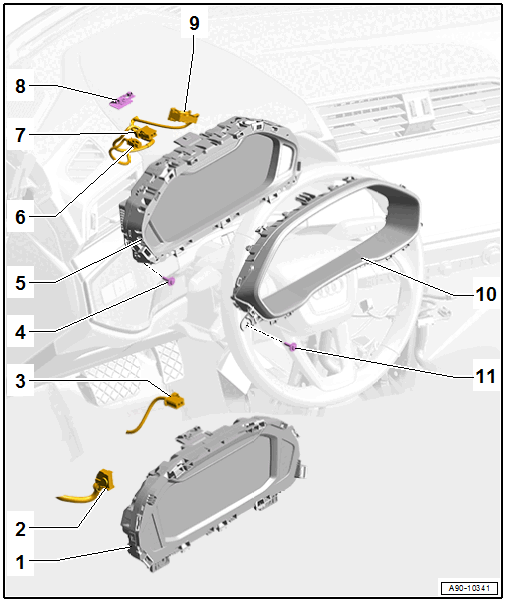

Overview - Instrument Cluster
- Instrument Cluster - Low
- If faulty replace the instrument cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Connector
- For the instrument cluster
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
- Bolt
- 2.5 Nm
- Quantity: 2
- Instrument Cluster - High
- If faulty replace the instrument cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Antenna Wire
- Instrument Cluster - High
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
- Clip
- Connector
- For the instrument cluster
- Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL .
- Quantity: 2
