Testing Values and Process Specifications Table:

Service:	Fluid Level Specified Value:
Delivery service	Fluid level at the MAX mark.
Changing the brake fluid	Fluid level between the MAX and MIN mark, consistent with the wear condition of the brake pads.

The leak test for the brake system is a repair procedure and should be charged separately.

Procedure :

-- Determine the brake fluid level according to the marks on the brake fluid reservoir.

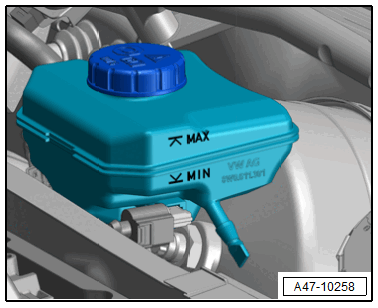

Fig 1: Brake Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Perform the following actions depending on the test result:

Fluid level:	Evaluation / Action:
Over the MAX mark	Extract the brake fluid.
Under the specified level	Perform a leak test for the brake system. Refer to LEAK TEST .

NOTE:

Due to wear and the automatic adjustment of the brake pads while driving, the brake fluid level lowers.
