Overview - Laser Distance Regulation Control Module

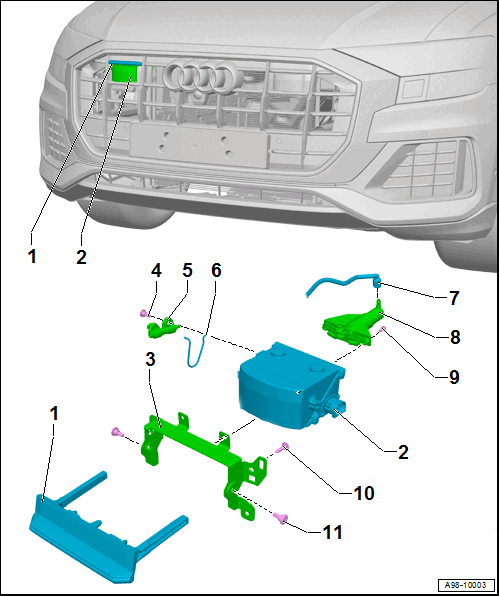

Fig 1: Exploded View Of Laser Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • For the washer nozzle
2. Laser Distance Regulation Control Module -J1122-
   • Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
   • Adjusting. Refer to LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING .
3. Mount
   • For Laser Distance Regulation Control Module -J1122-
   • Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
4. Bolt
   • 6 Nm
5. Adjuster
   • Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
   • Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at the adjuster using the : VAS6335 and correct if necessary. .
6. Spring
7. Washer Fluid Hose
8. Spray Nozzles
   • For Laser Distance Regulation Control Module -J1122-
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
9. Bolt
   • Tightening specification. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
   • Quantity: 2
10. Bolt
    • Tightening specification and sequence. Refer to Fig 2.
    • Quantity: 4
11. Bolt
    • 6 Nm
    • Quantity: 2

Tightening Specifications and Sequence Laser Distance Regulation Control Module J1122 with bracket 5

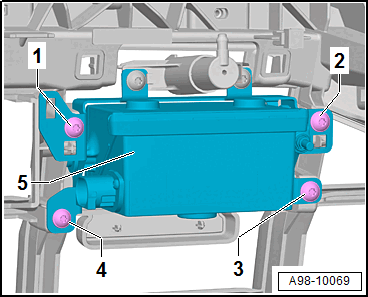

Fig 2: Laser Distance Regulation Control Module -J1122- Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the steps shown in the sequence:
