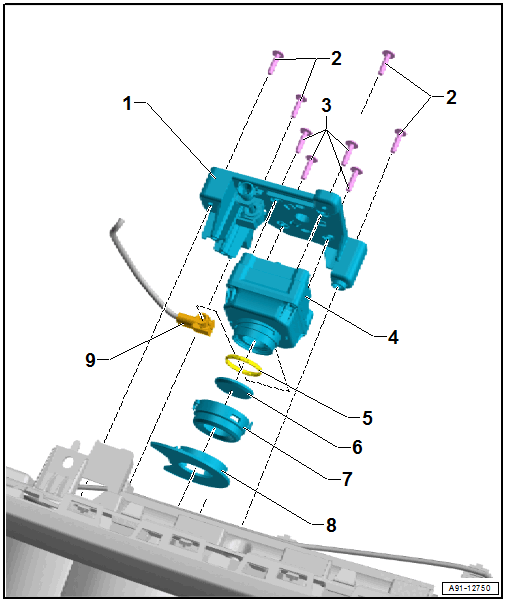

Overview - Night Vision System Camera
- Retaining Plate
- With adjusting screw and mount for the spray nozzle
- Bolt
- 2.5 Nm
- Secures the retaining plate to the radiator grille
- Quantity: 4
- Bolt
- 6 Nm
- Secures the Night Vision System Camera -R212- to the retaining plate
- Quantity: 4
- Night Vision System Camera -R212-
- Removing and Installing. Refer to Night Vision System Camera -R212-, REMOVING AND INSTALLING .
- Seal
- Replace after every removal
- Protective Window
- Removing and Installing. Refer to Protective Window, Removing .
- Cover
- With quick release
- Trim
- Connector
