Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING: Removing

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the upper air guide. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .

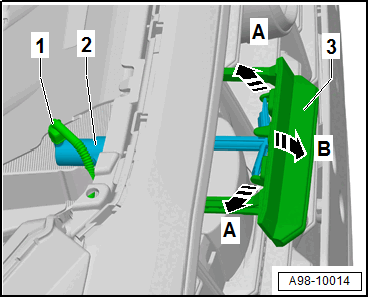

-- Release the clamp on the washer fluid hose connecting piece -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the washer fluid hose from the washer nozzle -2-.

-- Remove the washer nozzle -2- on the cap -3- all the way forward from the radiator grille and hold it in this position.

-- Push the retaining tabs on the cap -3- apart in direction of -A arrows-.

-- Remove the cap -3- from the washer nozzle -2- in direction of -arrow B-

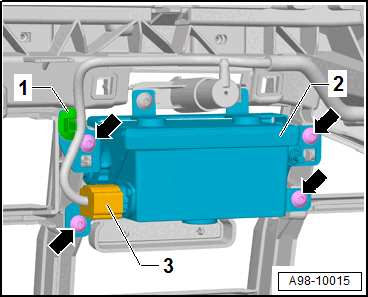

-- Clean and dry the Laser Distance Regulation Control Module -J1122- -2- near the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2-.

-- Remove the wiring harness bracket -1- from the Laser Distance Regulation Control Module -J1122- -2-.

-- Remove the screws -arrows-.

-- Remove the Laser Distance Regulation Control Module -J1122- -2- toward the rear from the radiator grille.
