Special Tools

Special tools and workshop equipment required

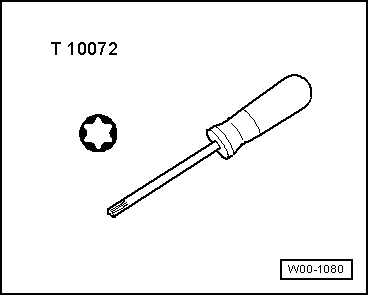

• Wrench - Driver: T10072
  Fig 1: Identifying Socket Wrench T 10072

  Courtesy of AUDI OF AMERICA, LLC

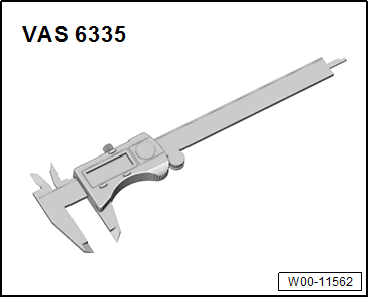

• Digital Caliper: VAS6335

  Courtesy of AUDI OF AMERICA, LLC

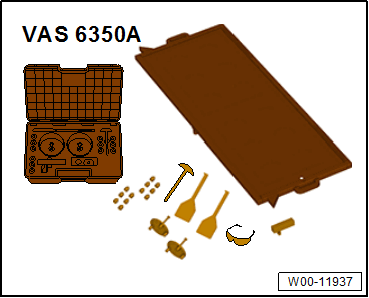

• Calibration Tool: VAS6350A

  Courtesy of AUDI OF AMERICA, LLC

• Calibration Tool - Lane Change Calibration Tool: VAS6350/4
• Calibration Tool - R8 Wheel Adapters: VAS6350/5
• Calibration Tool - Wheel Center Mounting: VAS6350/1A
• Calibration Tool - Spacing Laser: VAS6350/2A

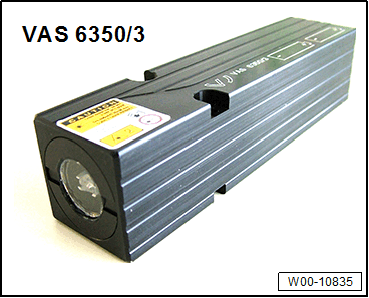

• Calibration Tool - Linear Laser: VAS6350/3A
  Fig 2: Identifying Linear Laser

  Courtesy of AUDI OF AMERICA, LLC
• Calibration Tool - Lane Change Calibration Tool: VAS6350/4

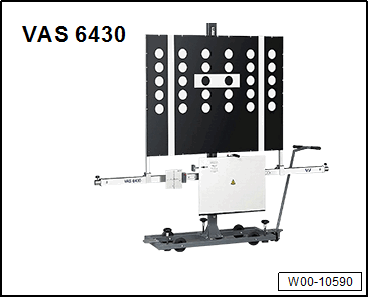

• Setting Device Basic Set: VAS6430/1  or Setting Device - Basic Set: VAS6430/1A
  Fig 3: Identifying Setting Device VAS 6430

  Courtesy of AUDI OF AMERICA, LLC
• ACC Reflector Mirror: VAS6430/3
• Night Vision Calibration Tool: VAS6430/6
• Setting Device Basic Set - Base Frame: VAS6430/7
• Setting Device - Adapter: VAS6430/9  , only for surface mounted hoist with a dimension greater than 300 mm.
• Calibration Board Laser Scanner: VAS6430/12
• Mounting: VAS6430/12-1

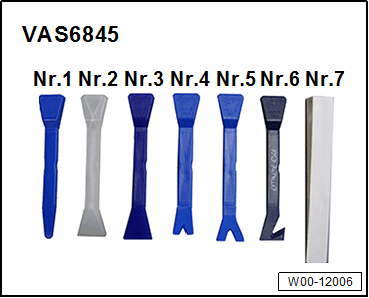

• Scraper Set: VAS6845

  Courtesy of AUDI OF AMERICA, LLC

• Screwdriver with T-bar: VAS272001
• Wheel Alignment Computer - Camera: VAS701001/1
