Inner Bracket, Removing And Installing: Removing
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Cover the control module -2- with a soft towel.
CAUTION:
There is a risk of destroying the windshield projection head up display control module.
- Only remove the designated bolts from the control module.
- Never remove the bolts for the housing upper section.
-- Remove the bolts -1, 3 and 4-.
-- Lift the control module slightly and disconnect the connector.
-- Remove the control module.
-- Remove the air duct. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
-- Free up the wiring harness.

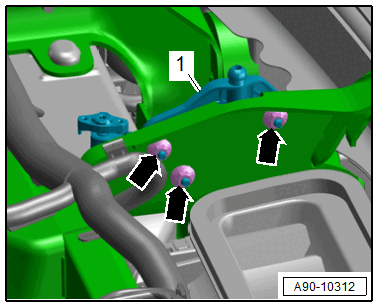

-- Remove the nuts -arrows-.
-- Remove the bracket -1-.
