Brake Inspection: Chamfer

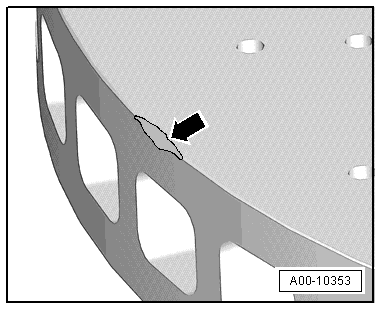

Chamfers -arrow- on the edges of the brake rotor are caused by mechanical damage.
The following are permitted:
- maximum width/depth = 2 mm.
- maximum length = 10 mm
- Maximum number of chamfers on the brake rotor = 3
Ceramic brake rotors are to be replaced if any of these criteria are exceeded.
CAUTION:
Risk of accident due to uneven braking.
- If a brake rotor is damaged or worn, check the other brake rotors for damage and wear.
