Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi A4 Quattro and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

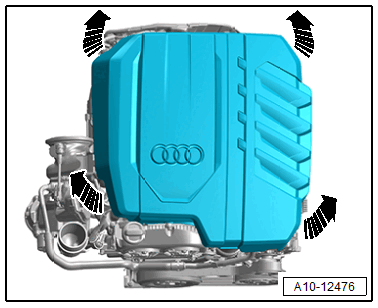

-- Carefully pull the engine cover off the ball pins one after the other in direction of -arrows-. Do not pull sharply on the engine cover or pull it to one side.

GWWA10-12476Courtesy of AUDI OF AMERICA, LLC
