Brake Pads, Checking Thickness: Notes

Special tools and workshop equipment required

• Test Pin: T40139  or Test Pin: T40139A  : Use the thin measuring pin side (brake symbol) to measure the brake pad thickness.

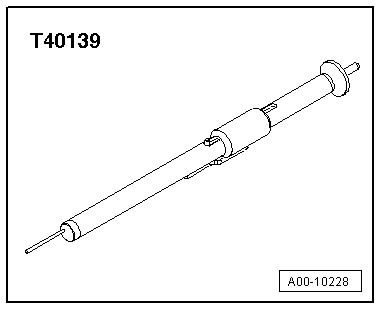

  Fig 1: Identifying Test Pin

  Courtesy of AUDI OF AMERICA, LLC
