Left/Right Rear Bass Speaker -R15- / -R17-, Removing And Installing, 8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

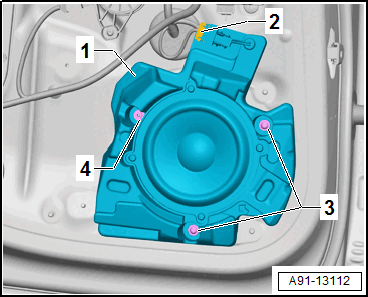

-- Release and disconnect the connector -2- from the Left Rear Bass Speaker -R15- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -3- and the nut -4-.

-- Remove the Left Rear Bass Speaker -R15- -1-.
