Overview - Instrument Cluster

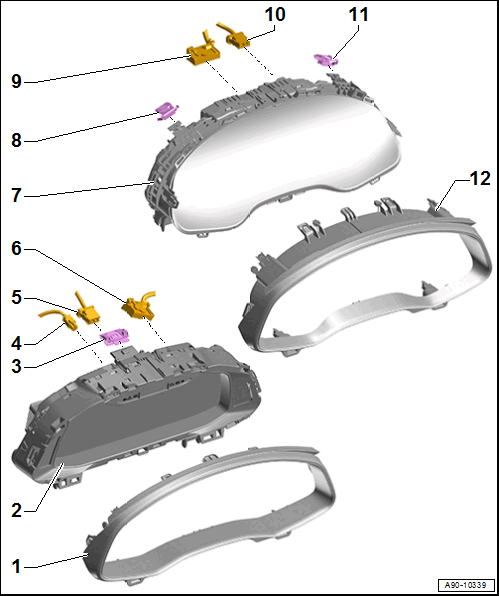

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Instrument Cluster Trim - High
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Instrument Cluster - High
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
Clip
- No replacement part
Antenna Wire
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
Connector
- For the instrument cluster
Instrument Cluster - Low
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
Clip
- No replacement part
Connector
- For the instrument cluster
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
Clip
- No replacement part
instrument Cluster Trim - Low
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
