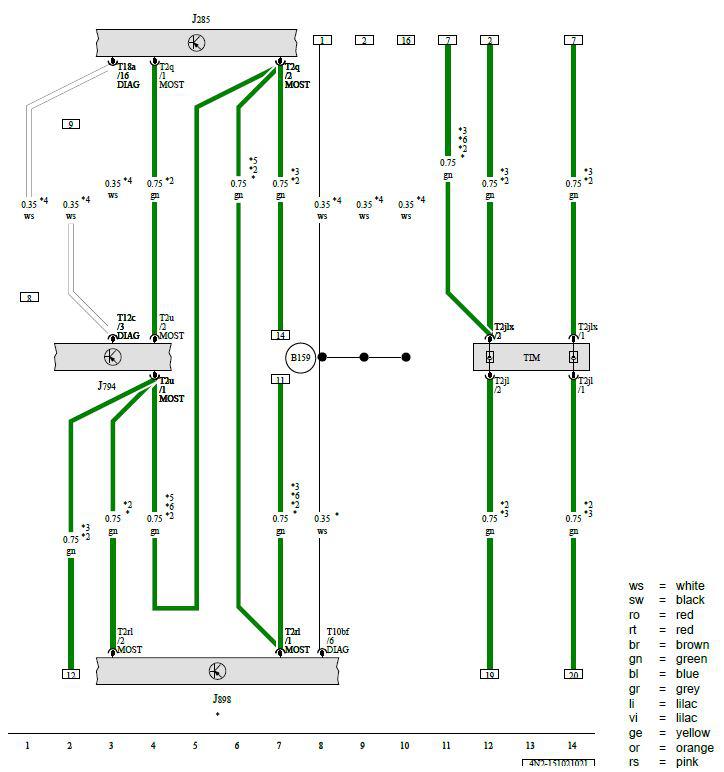

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

T2jl -  2-Pin Connector, Black

T2jlx -  2-Pin Connector, Black

T2q -  2-Pin Connector, Black

T2rl -  2-Pin Connector, Black

T2u -  2-Pin Connector, Black

T10bf -  10-Pin Connector, Black

T12c -  12-Pin Connector, Gray

T18a -  18-Pin Connector, Black

TIM -  Coupling Point in Interior, Center

B159 -  Diagnostic Connection (in Interior Wiring Harness)

* -  For Vehicles with Windshield Projection

*2 -  Fiber Optic Cable

*3 -  For Vehicles with TV Tuner

*4 -  Depending on Equipment

*5 -  For Vehicles Without TV Tuner

*6 -  For Vehicles Without Windshield Projection
