Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

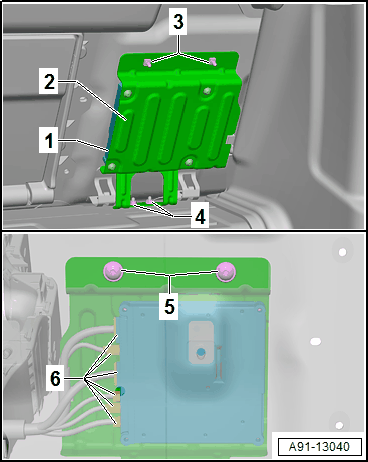

The bracket -2- is mounted in the luggage compartment -4- and on the rear seat backrest -3 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- On the rear seat backrest, remove the bolts -5-.

-- Remove the nuts -4- and pivot the Control Module for Emergency Call Module and Communication Unit -J949- -1- with the bracket -2- from the rear panel.

-- Release and disconnect the connectors -6-.

-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- with the bracket -2-.

-- Remove the bolts -3- from the bracket -2- and remove the Control Module for Emergency Call Module and Communication Unit -J949- -1-.

Courtesy of AUDI OF AMERICA, LLC
