External Multimedia Device Connection, Removing And Installing: Removing
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console storage compartment. Refer to OVERVIEW - CENTER CONSOLE .
-- Release and disconnect the connectors from the external multimedia device connection.

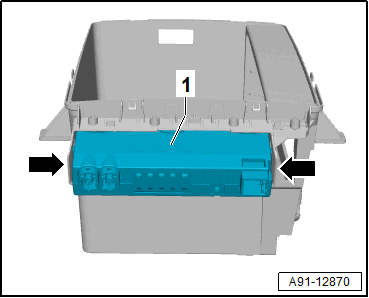

-- Push the locking tabs -arrows- on the external multimedia device connection -1- and remove the external multimedia device connection -1- from the storage compartment.
