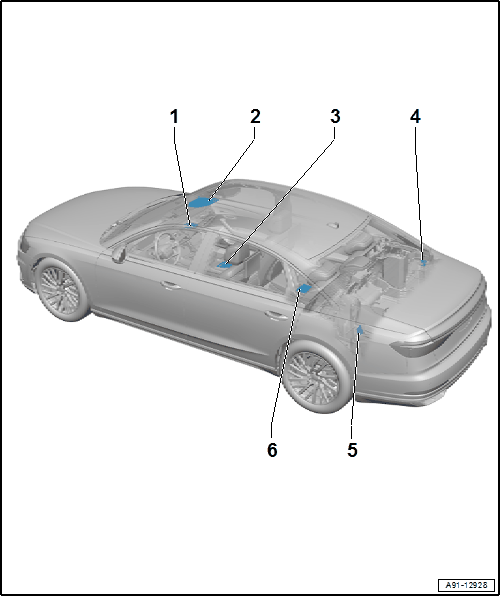

Component Location Overview - Telephone System
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Right Front Microphone -R141-
- Interior Microphone -R74-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to Mobile Device Charger 1 - J1146- REMOVING AND INSTALLING, 9ZV/9ZE/2F1 .
- The appropriate Wiring Diagram
- Cellular Telephone Amplifier -R86-
- in rear right of luggage compartment
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Cellular Telephone Amplifier 2 -R328-
- In the luggage compartment on the left rear side
- Removing and Installing. Refer to Cellular Telephone Amplifier 2 -R328-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Mobile Device Charger 2 -J1147-
- In the rear center console storage compartment
- Removing and Installing. Refer to Mobile Device Charger 2 -J1147-, REMOVING AND INSTALLING, QF6/QF7 .
- The appropriate Wiring Diagram
- Telephone Baseplate -R126-
- Removing and Installing. Refer to Telephone Baseplate -R126- IN REAR, REMOVING AND INSTALLING, QF8 .
- The appropriate Wiring Diagram
