Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the left front carpet. Refer to CARPET, REMOVING AND INSTALLING .

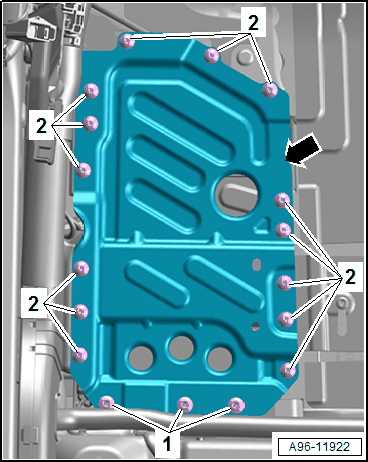

-- NAR version: remove the bolts -2- and nuts -1-, and remove the reinforcement plate -arrow-.

Courtesy of AUDI OF AMERICA, LLC

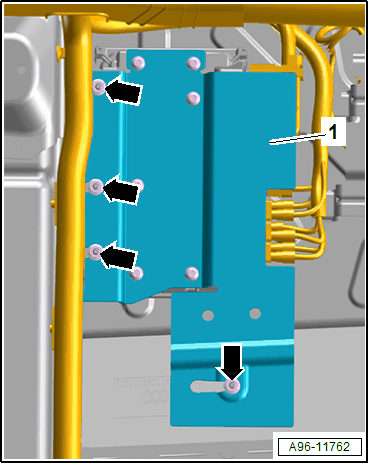

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the mount -1- with the driver assistance systems control module off of the threaded pins and move it to the side.

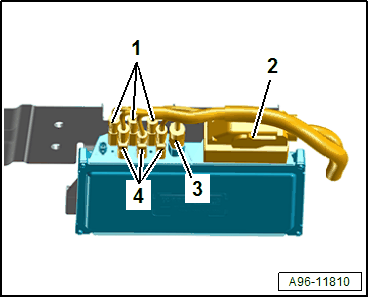

-- Disconnect the connectors -1 through 4-.

Courtesy of AUDI OF AMERICA, LLC

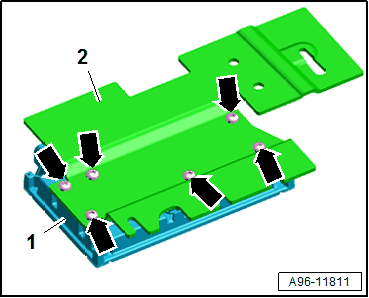

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -2- from the driver assistance systems control module -1-.
