Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the center end panel. Refer to OVERVIEW - RADIATOR GRILLE .

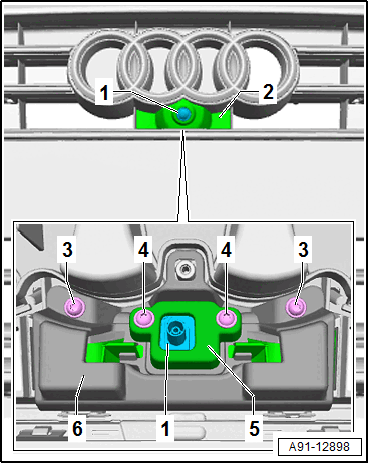

-- Release and disconnect the connector from the Front Peripheral Camera -R243- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -4-.

-- Remove the retaining plate -5-.

-- Remove the Front Peripheral Camera -R243- -1-.

-- If necessary, release the retaining tabs on the trim -2- and unclip the trim -2- forward from the radiator grille.

-- If necessary, remove the screws -3- and remove the holder -6- from the radiator grille.
