Left/Right Peripheral Camera -R244- / -R245-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the exterior rearview mirror turn signal. Refer to TURN SIGNAL, REMOVING AND INSTALLING .

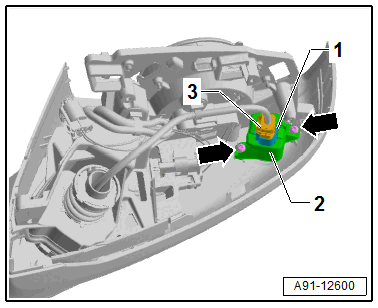

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Peripheral Camera -R244- -1- with the bracket -2- from the exterior rearview mirror.

-- Release and disconnect the connector -3-.

-- Remove the Left Peripheral Camera -R244- -1- from the bracket -2-.
