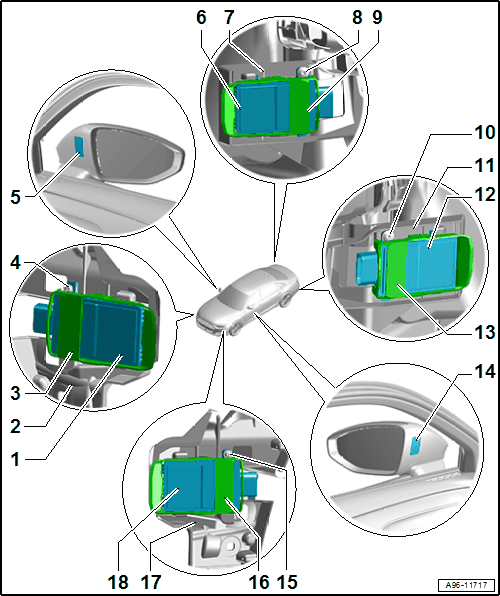

Overview - Control Module For Front Object Detection Radar Sensor

Courtesy of AUDI OF AMERICA, LLC

1. Control Module for Right Front Object Detection Radar Sensor -J1089-
   • Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
   • Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
2. Mount
   • For the bumper cover
3. Shield
4. Bolt
   • 4 Nm
5. Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
   • Removing and Installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
6. Lane Change Assistance Control Module -J769-
   • Removing and Installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- / -J770-, REMOVING AND INSTALLING .
   • Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
7. Mount
   • For the bumper cover
8. Bolt
   • Tightening specification -Item  ) Bolt
   • Quantity: 2
9. Shield
10. Bolt
    • Tightening specification -Item  ) Bolt
    • Quantity: 2
11. Mount
    • For the bumper cover
12. Lane Change Assistance Control Module 2 -J770-
    • Removing and Installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- / -J770-, REMOVING AND INSTALLING .
    • Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
13. Shield
14. Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
    • Removing and Installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
15. Bolt
    • 4 Nm
16. Shield
17. Mount
    • For the bumper cover
18. Control Module for Left Front Object Detection Radar Sensor -J1088-
    • Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
    • Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
