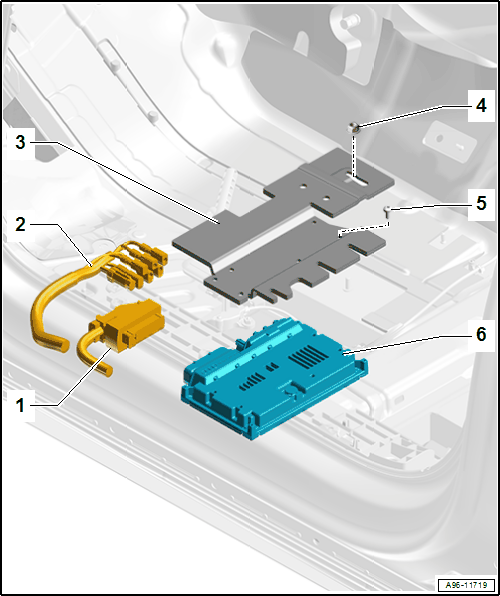

Component Location Overview - Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Connector
2. Connectors
   • Allocation. Refer to the appropriate Wiring Diagram.
3. Mount
   • For the Driver Assistance Systems Control Module -J1121-
4. Nut
   • 10 Nm
   • Quantity: 4
5. Bolt
   • 8 Nm
   • Quantity: 4
6. Driver Assistance Systems Control Module -J1121-
   • Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
