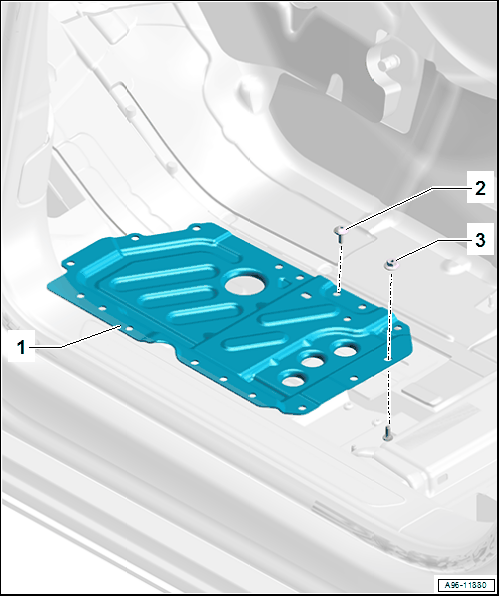

Component Location Overview - Reinforcement Plate, NAR Version

Courtesy of AUDI OF AMERICA, LLC

1. Reinforcement Plate
   • Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
2. Bolt
   • 10 Nm
   • Quantity: 14
3. Nut
   • 10 Nm
   • Quantity: 3
