Overview - Laser Distance Regulation Control Module

Fig 1: Exploded View Of Laser Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Mount
   • For Laser Distance Regulation Control Module -J1122-
   • Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
2. Right Washer Nozzle
   • For Laser Distance Regulation Control Module -J1122-
   • Overview - Auxiliary Washer System. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
3. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
   • Quantity: 2
4. Bolt
   • Tightening specification -Item  ) Bolt
   • Quantity: 3
5. Retaining Plate
   • Removing and Installing. Refer to RETAINING PLATE FOR CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .
6. Clip
   • Open version
   • Cannot be removed without being damaged
7. Clip
   • Open version
   • Cannot be removed without being damaged
8. Clip
   • Closed version
   • Cannot be removed without being damaged
   • Note the installation position
9. Stud Bolt
   • Quantity: 3
   • Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the Digital Caliper: VAS6335 and correct if necessary. .
10. Clip
    • Must be replaced when the stud bolt is removed
    • Replacing. Refer to CLIPS FOR Control Module for Adaptive Cruise Control -J428-, REPLACING .
    • Quantity: 3
11. Control Module for Adaptive Cruise Control -J428-
    • Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .
    • Adjust the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
12. Operating Lever for Adaptive Cruise Control
    • Shared component with the steering column switch module. Cannot be replaced separately
    • Removing and Installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING
13. Instrument Cluster
    • With Instrument Cluster Control Module -J285-
14. Bolt
    • 6 Nm
15. Adjuster
    • Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
    • Note the adjustment dimension. Refer to Installing - .
16. Spring
17. Washer Fluid Hose
    • From the window washer pump
18. Laser Distance Regulation Control Module -J1122-
    • Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
    • Adjust the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
19. Connector
20. Bolt
    • Tightening specification and sequence. Refer to Fig 2.
    • Quantity: 2
21. Left Washer Nozzle
    • For Laser Distance Regulation Control Module -J1122-
    • Overview - Auxiliary Washer System. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
22. Bolt
    • 6 Nm
    • Quantity: 2

Laser Distance Regulation Control Module J1122 - Tightening Specification and Sequence

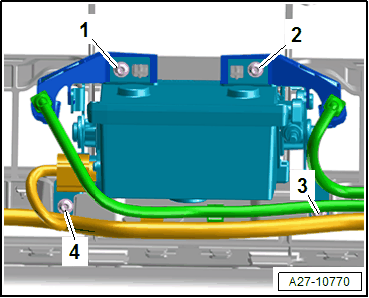

Fig 2: Laser Distance Regulation Control Module -J1122- - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws to 3 Nm in the sequence: -1 to 4-.
