Window Guide, Removing And Installing: Removing

-- Remove the front door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the front door trim molding. Refer to TRIM MOLDING, REMOVING AND INSTALLING, FRONT DOOR .

-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT .

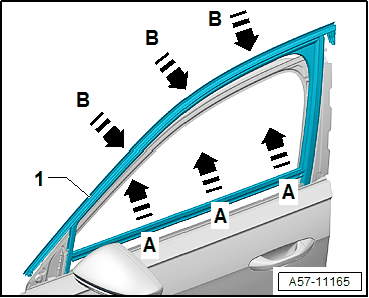

-- Loosen the lower window guide -1- upward -A arrows-.

GWWA57-11165Courtesy of AUDI OF AMERICA, LLC

-- Remove the window guide -1- outward from the door frame -B arrows-.
