Overview - Rear Side Window

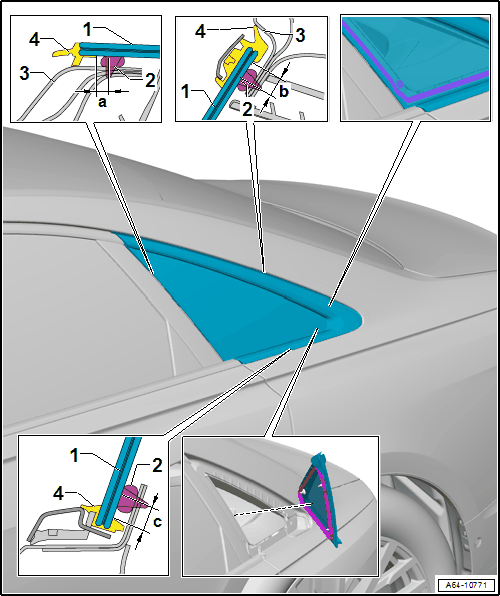

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Rear Side Window
   • Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
   • After installing, push in using the locating pins
2. Adhesive Bead
   • Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Different distances to window edge:
     • Dimension -a- = 8.0 mm
     • Dimension -b- = 7.5 mm
     • Dimension -c- = 7.5 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
3. Side Window Frame
4. Molding
