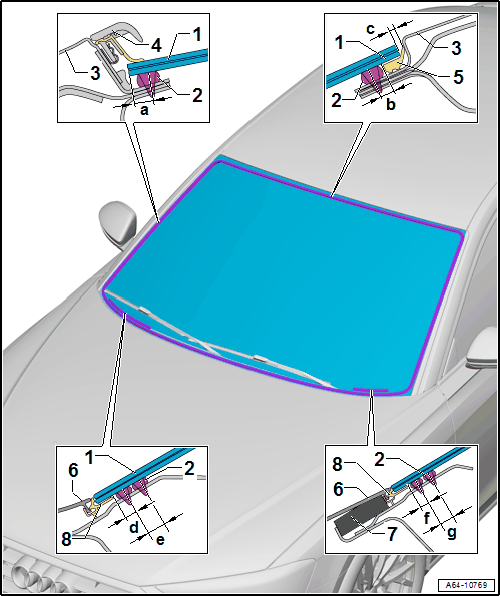

Overview - Windshield: Notes

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Windshield
   • Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
   • Distance to roof frame: dimension -c- = 2.5 mm ± 0.5 mm
   • Center the side distance to the A-pillars
   • Windshield Defogger Control Module -J505-, Removing and Installing. Refer to Windshield Defogger Control Module -J505-, REMOVING AND INSTALLING .
2. Adhesive Bead
   • Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Different distances to window edge:
     • Dimension -a- = 7.0 mm
     • Dimension -b- = 7.7 mm
     • Dimension -d- = 7.8 mm
     • Dimension -e- = 10.7 mm
     • Dimension -f- = 7.8 mm
     • Dimension -g- = 10.7 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
   • Positioning of the double adhesive bead Positioning of the Double Adhesive Bead
3. Windshield Frame
4. Drip Rail
   • Removing and Installing. Refer to DRIP RAIL, REMOVING AND INSTALLING .
5. Molding
6. Plenum Chamber Cover
   • Insert in the frame -item  8-
   • Only press on until it stops after the minimum curing time for the adhesive.
7. Windshield Adjusting Wedge
   • Quantity: 2
   • Remove before installing the plenum chamber cover -item  6-
8. Plenum Chamber Cover Frame
   • Windshield component -item  1-

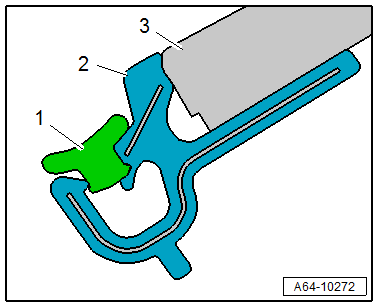

   • With a new windshield -item  1-, remove the protective molding before installing the cowl panel trim. Refer to Figure.
