Windshield Defogger Control Module -J505-, Removing And Installing: Removing

-- Remove the spare tire well trim. Refer to SPARE TIRE WELL TRIM, REMOVING AND INSTALLING .

-- Disconnect the connectors -2-.

Courtesy of AUDI OF AMERICA, LLC

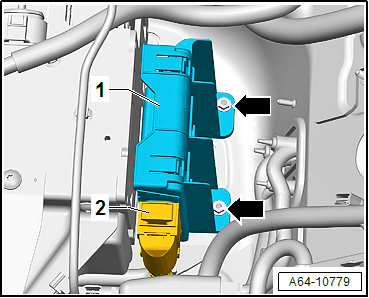

-- Remove the nuts  -arrows-.

-- Remove the bracket with Windshield Defogger Control Module -J505-.

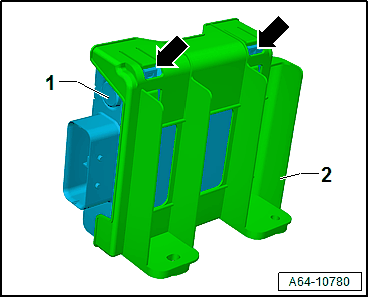

-- Release the retainers -arrows- and remove the Windshield Defogger Control Module -J505- -item 1- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC
