Overview - Windshield Projection (Head-Up Display)

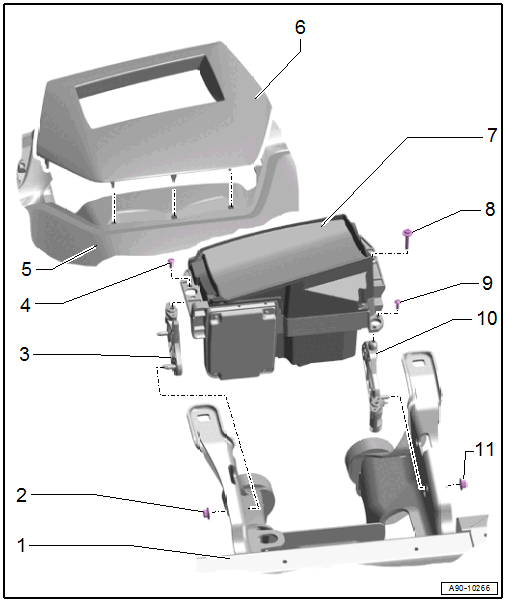

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Panel Crossmember
2. Nut
   • Quantity: 3
   • Must not be loosened
3. Exterior Bracket
   • For windshield projection control module
   • Must not be removed
4. Bolt
   • Quantity: 2
   • Tightening specification and sequence. Refer to Fig 2.
5. Instrument Panel
6. Upper Cover
   • Removing and installing. Refer to OVERVIEW - INSTRUMENT PANEL
7. Windshield Projection Head Up Display Control Module -J898-
   • Removing and installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
8. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
9. Bolt
   • Quantity: 2
   • Tightening specification and sequence. Refer to Fig 2.
10. Interior Bracket
    • For windshield projection control module
    • Must not be removed
11. Nut
    • Quantity: 3
    • Must not be loosened

Windshield Projection Head Up Display Control Module - Tightening Specification and Sequence

Fig 2: Windshield Projection Head Up Display Control Module - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the sequence shown.

1. 5.5 Nm
2. 4 Nm
3. 4 Nm
