Rearview Camera System, Calibrating

Special tools and workshop equipment required

Vehicle Diagnostic Tester
Calibration Tool: VAS6350A
Calibration Tool - Spacing Laser: VAS6350/2A
Calibration Tool - R8 Wheel Adapters: VAS6350/5 for rims with a large offset

Calibration/adjustment must be performed if:

The rear lid handle button was removed and installed with the Rearview Camera -R189-.
A software update was performed.
Collision repairs were performed on the rear lid.
Wheel alignments were performed.
The front or rear axle was repaired.

Preparing for Calibration

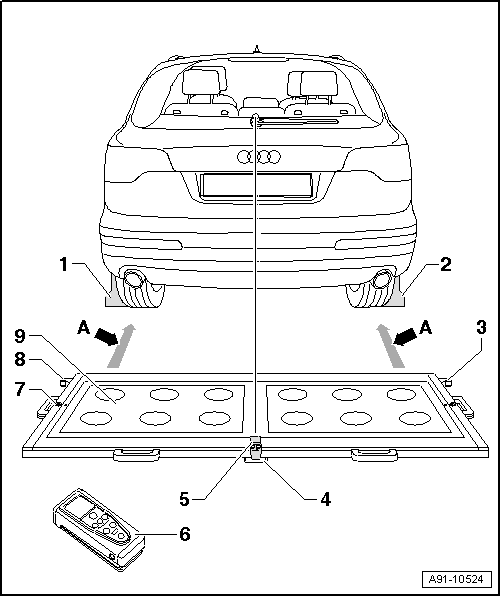

Fig 1: Identifying Overview Of Assembled Calibration Equipment

Courtesy of AUDI OF AMERICA, LLC

Calibration Tool - Wheel Center Mounting: VAS6350/1A
- With wheel bolt adapter and measuring paddle
- For rims with a large offset use the Calibration Tool - R8 Wheel Adapters: VAS6350/5 .
Calibration Tool - Wheel Center Mounting: VAS6350/1A
- With wheel bolt adapter and measuring paddle
- For rims with a large offset use the Calibration Tool - R8 Wheel Adapters: VAS6350/5 .
Right Catch Bracket
- To mount the Spacing Laser: VAS6350/2A for the distance measurement
Plastic Foot
- Quantity: 3
- Adjustable for adjusting the horizontal position of the : VAS6350A
Calibration Tool - Linear Laser: VAS6350/3A
- With "laser protective eyewear"
- On the : VAS6350A
- Refer to : VAS6350/3A Owner's Manual for handling.
Calibration Tool - Spacing Laser: VAS6350/2A
- For distance measurement
- Refer to the : VAS6350/2A Operating Instructions for handling.
Level
- On the : VAS6350A
- For checking the horizontal position
Left Catch Bracket
- To mount the : VAS6350/2A for the distance measurement
Calibration Tool: VAS6350A
- Between the catch bracket on the calibration board and the : VAS6350/1A , dimension -a- 1.40 m through 2.00 m.

Preliminary Work

Move the vehicle onto a solid, flat surface.
Move the wheels so that they are in a straight-ahead position.
For vehicles with rear axle steering, steer the rear axle to the zero position. Refer to Rear Axle Steering . This is the only way to ensure that the rear axle steering is in the straight-ahead position.
Vehicles without air suspension: deflect the springs several times and let settle.
Electromechanical parking brake applied.
Clean the camera lens on the Rearview Camera -R189-.
All vehicle doors closed.
Connect the battery charger for the battery support mode. Refer to BATTERY, CHARGING .
Before starting the calibration/adjustment, check the DTC memory and correct all displayed entries.

If the Rearview Camera -R189- is replaced:

-- If replacing the control module, select the "Replace control module" function for the corresponding control module on the Vehicle Diagnostic Tester.

Procedure

Fig 2: Identifying Wheel Pick-Ups On Wheel Mounting Bolts At Rear Wheels

Courtesy of AUDI OF AMERICA, LLC

-- Check which hole circle the rims have.

-- On every : VAS6350/1A , attach three fitting wheel bolt adapters for the wheel bolts using the : VAS6350/5 .

-- Insert the measuring paddle at both : VAS6350/1A and secure with the locking nut.

-- Place the : VAS6350/1A onto the wheel bolts on both rear wheels.

The wheel center mounting rotation center must be in the wheel rotation center.

-- Place the : VAS6350/1A on the wheels so that any "anti-theft wheel bolts" are not connected to the wheel center mounting.

-- Adjust the measuring paddle using the locking nuts so that they move freely just above the floor.

The measuring paddles must move easily.
The measuring paddles must be vertical.

-- Position the : VAS6350A at distance -a- to the rear wheels.

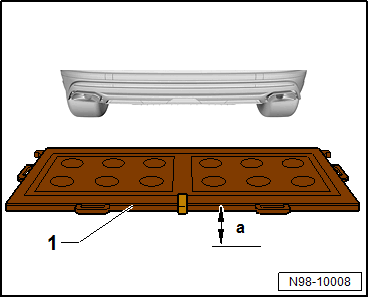

Fig 3: Positioning Calibration Device VAS 6350

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 1.40 to 2.00 m

-- Using the bubble level (level indicator) -arrow-, bring the : VAS6350A into a horizontal position by turning the plastic bases.

Courtesy of AUDI OF AMERICA, LLC

-- Wear "laser protective eyewear".

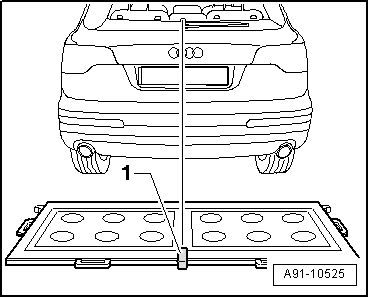

Fig 4: Identifying Laser -1- On Calibration Platform Set To Align Entire Calibration Platform With Vehicle

Courtesy of AUDI OF AMERICA, LLC

-- Turn on the : VAS6350/3A -1- on the : VAS6350A .

-- Align the : VAS6350A so that the : VAS6350/3A -1- strikes the center of the brand emblem on the rear lid.

Distance measurement of : VAS6350A to rear wheels:

-- Switch on the : VAS6350/2A .

The Following Display Appears 1 :

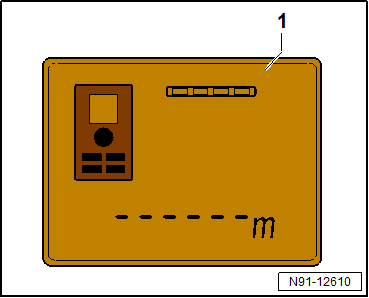

Fig 5: The Following Display Appears -1- :

Courtesy of AUDI OF AMERICA, LLC

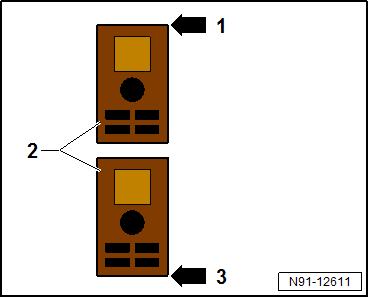

The display -2- shows how to position the : VAS6350/2A .

Courtesy of AUDI OF AMERICA, LLC

-arrow 1- : position with front edge
-arrow 3- : position with rear edge

-- Press the corresponding button.

-- Hold the : VAS6350/2A -2- for the distance measurement on one side of the : VAS6350A flush to the catch bracket, as shown.

Courtesy of AUDI OF AMERICA, LLC

The : VAS6350/2A -2- must lie firmly against the catch bracket.

-- Push the measurement button briefly.

The laser switches on.

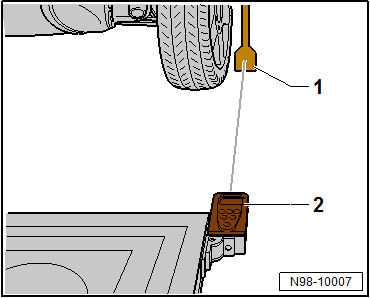

-- Make sure the "laser beam" for the distance measurement contacts the lower enlarged part of the measuring paddle -1-.

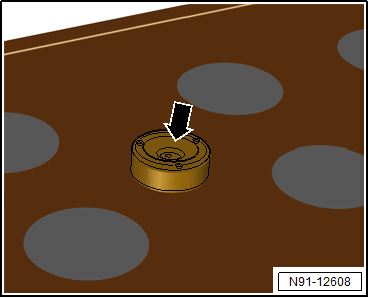

If that is not the case, then correct the measuring paddle -1- height using the clamping screw on the : VAS6350/1A .

-- Use one hand to hold the : VAS6350/2A firmly in the catch bracket on the : VAS6350A ; the laser beam should be seen on the measuring paddle during this.

-- Then press the measurement button for the distance measurement briefly.

-- Note the value.

-- Repeat this measurement on the other side of the : VAS6350A in the same way for the rear wheel.

The distance value must be the same on both sides.

-- If both measured values are not the same, then readjust the : VAS6350A correspondingly until the distance values are the same on both sides.

-- Make sure the : VAS6350/3A strikes the center above the brand emblem and that the level indicator remains centered. Adjust if necessary.

Distance measurement of : VAS6350A to the workshop floor:

Courtesy of AUDI OF AMERICA, LLC

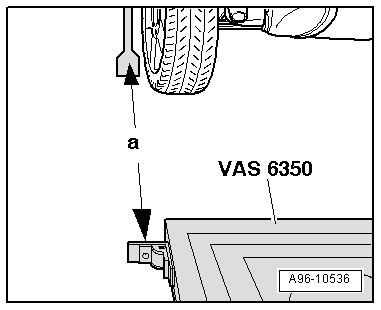

-- Measure the distance from the upper edge of the : VAS6350A to the floor, dimension -a-.

-- Make sure the : VAS6350/2 is set correctly (attached to the front edge).

The display -2- shows how to position the : VAS6350/2A .

Courtesy of AUDI OF AMERICA, LLC

-arrow 1- : position with front edge
-arrow 3- : position with rear edge

-- Press the corresponding button.

-- Then press the measurement button for the distance measurement briefly.

-- Note the measured distance from the upper edge of the : VAS6350A to the floor.

Height measurement from center of rearview camera lens to the wheel contact surface:

-- Use commercially available measuring tape to measure the height from the center of the rearview camera lens to the wheel contact surface.

-- Mark the determined height.

The determined distance and height dimensions must now be entered in "millimeters" in the Vehicle Diagnostic Tester.

Calibration Procedure

The following should not occur during the calibration procedure:

Vehicle doors must not be opened or closed.
People must not sit in the vehicle.
Vehicle must not be loaded (curb weight).

-- Connect the Vehicle Diagnostic Tester.

-- Switch the ignition on.

-- Select and start the Diagnostic operating mode.

-- Select the Test plan tab.

-- Select the Select individual test button and select the following tree structure consecutively:

Diagnostic-capable systems
006C - Rearview Camera System Control Module - J772
006C - Rearview Camera System Control Module, functions
006C - Calibrating

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

-- Switch off the ignition after successful calibration/adjustment.

-- Disconnect the Vehicle Diagnostic Tester from the diagnostic connection.

-- Disconnect the battery charger. Refer to BATTERY, CHARGING .
