Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the upper air guide. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .

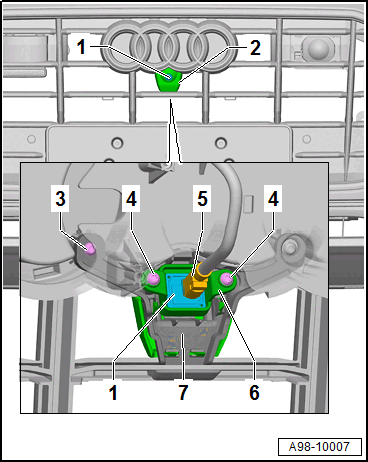

-- Release and disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -4-.

-- Remove the retaining plate -6-.

-- Remove the Front Peripheral Camera -R243- -1-.

If the retainer -7- should be removed:

-- Remove the center end panel. Refer to OVERVIEW - RADIATOR GRILLE .

-- Release the retaining tabs on the trim -2- and unclip the trim -2- forward from the radiator grille.

-- Remove the bolt -3-.

-- Remove the retainer -7- from the radiator grille.
