Camshaft Adjuster

The following components are visible after removing the engine cover on the upper timing chain cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

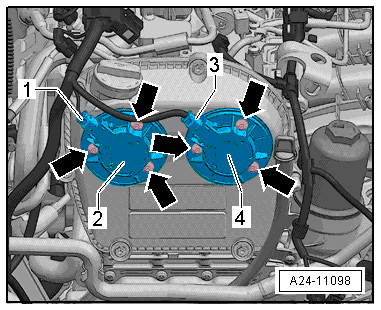

Engines with Two Camshaft Adjusters.

Courtesy of AUDI OF AMERICA, LLC

2 -  Exhaust Camshaft Adjustment Valve 1 -N318-

4 -  Camshaft Adjustment Valve 1 -N205- in the Intake

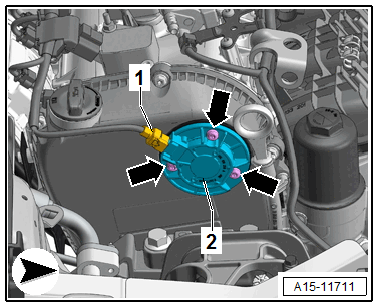

Engines with One Camshaft Adjuster

Courtesy of AUDI OF AMERICA, LLC

2 -  Camshaft Adjustment Valve 1 -N205- in the Intake
